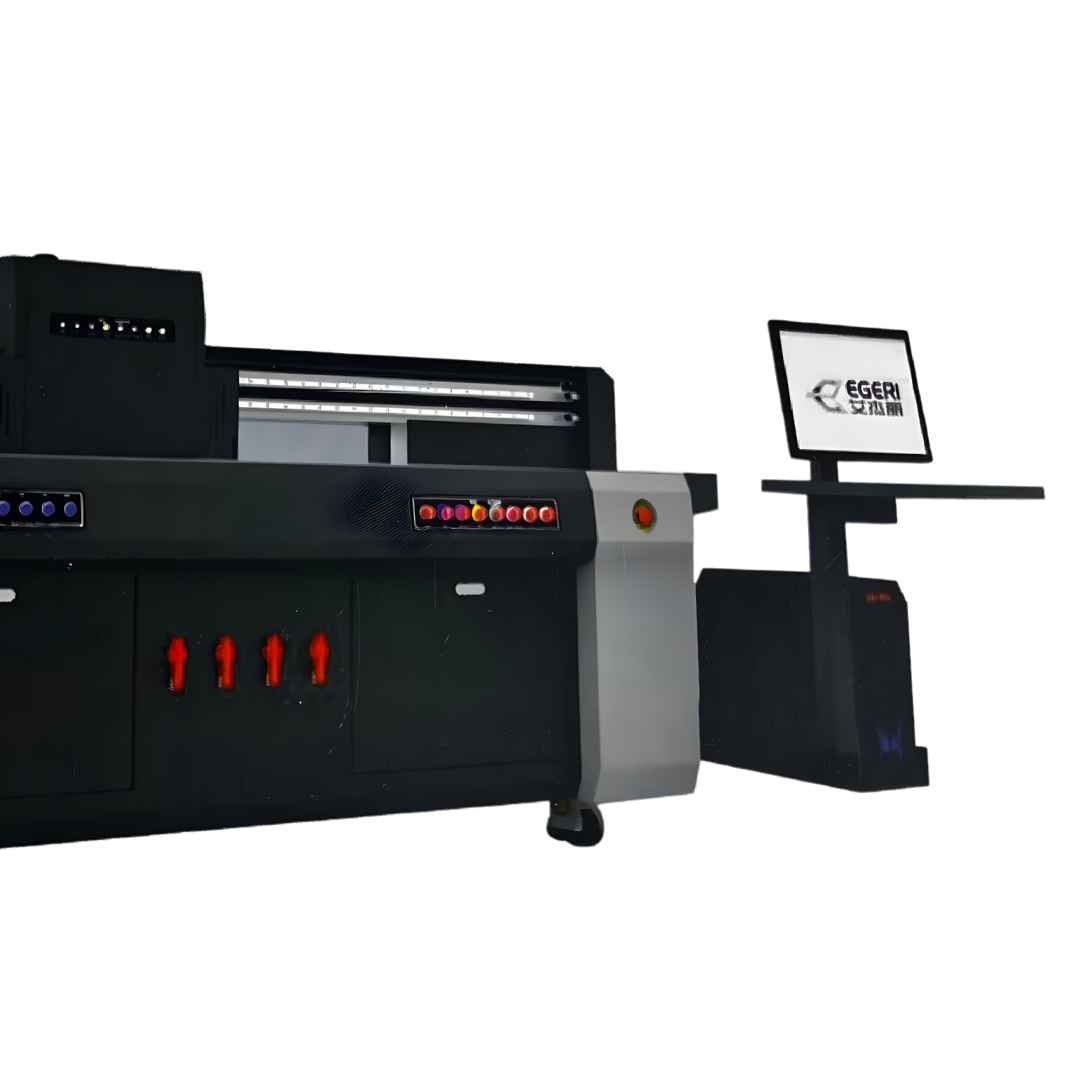

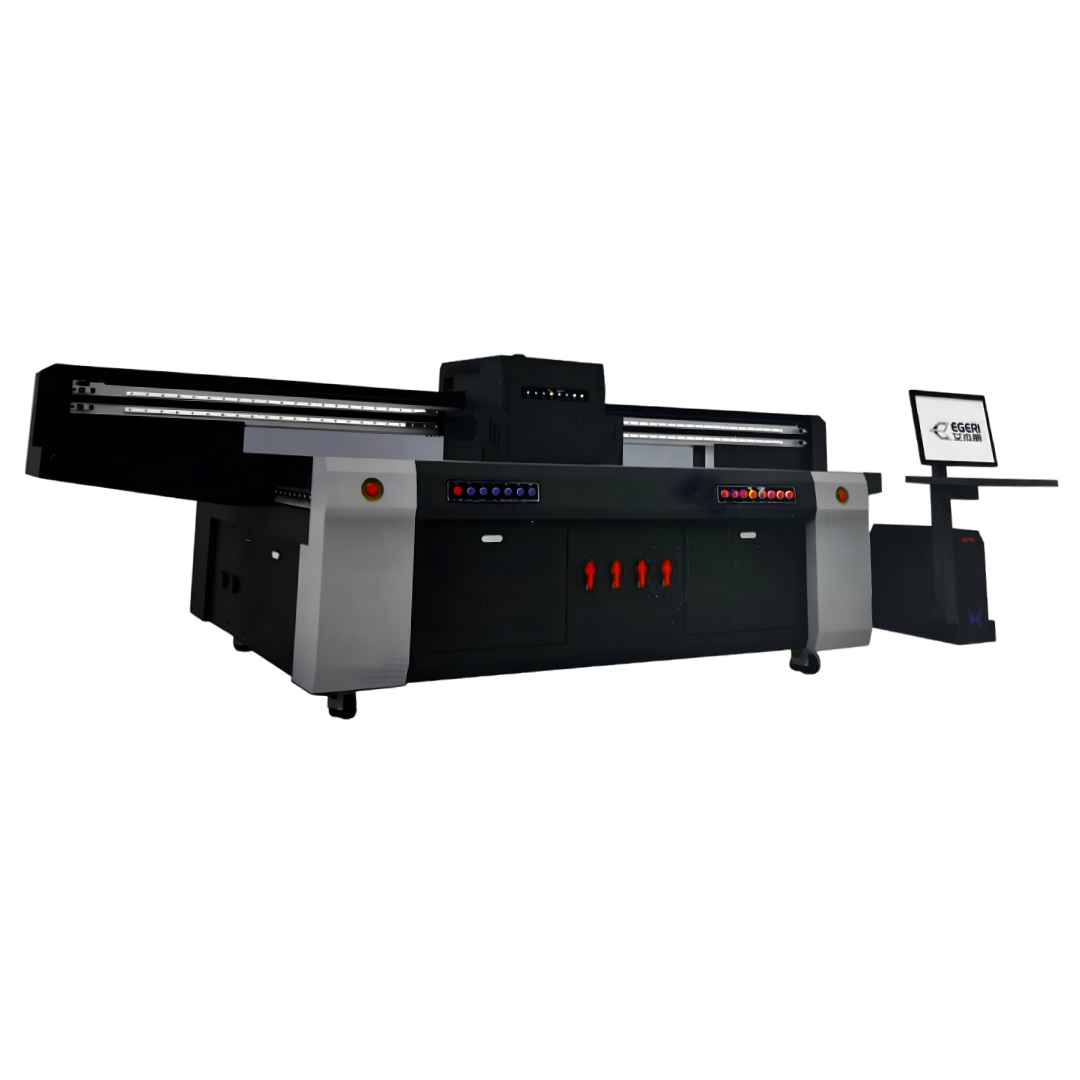

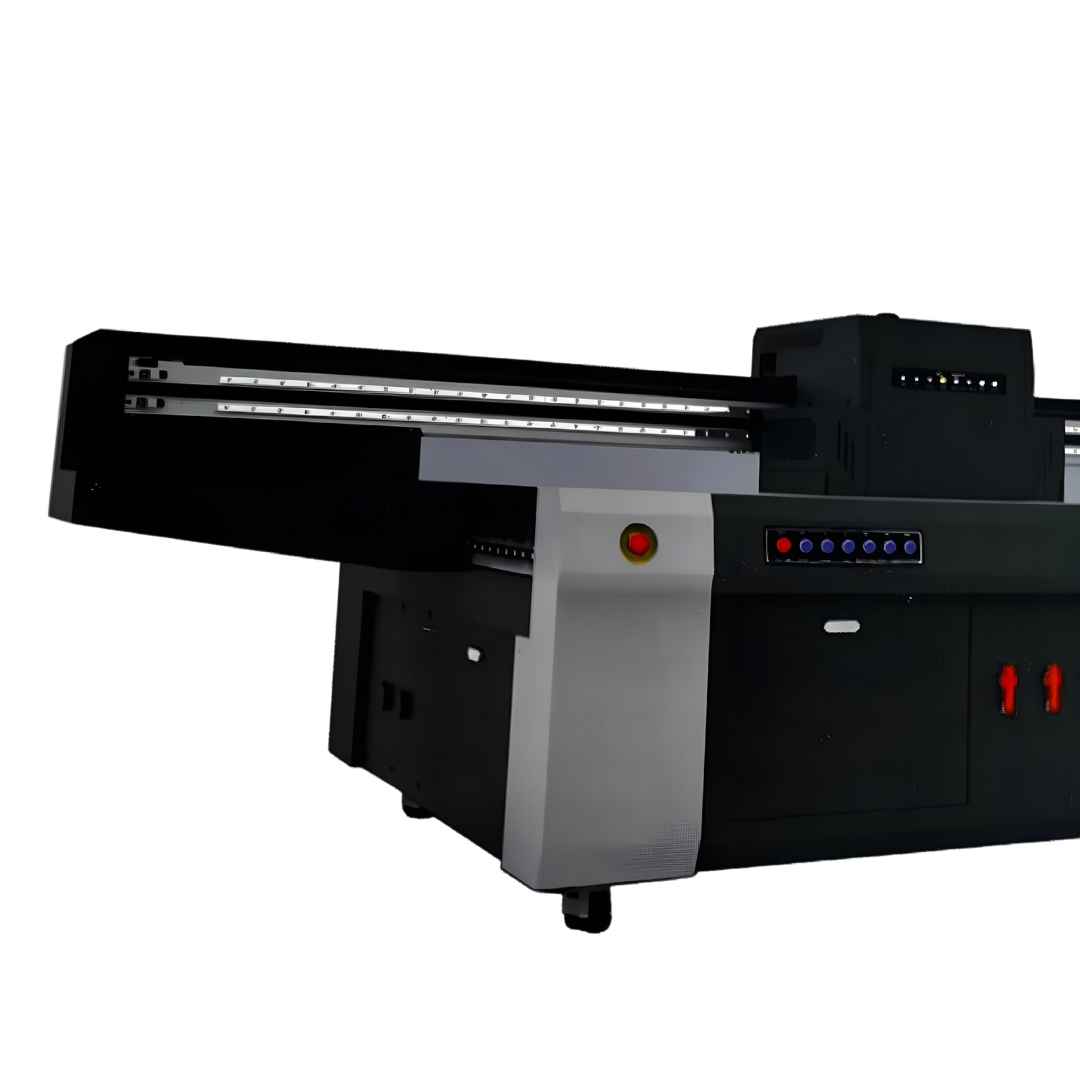

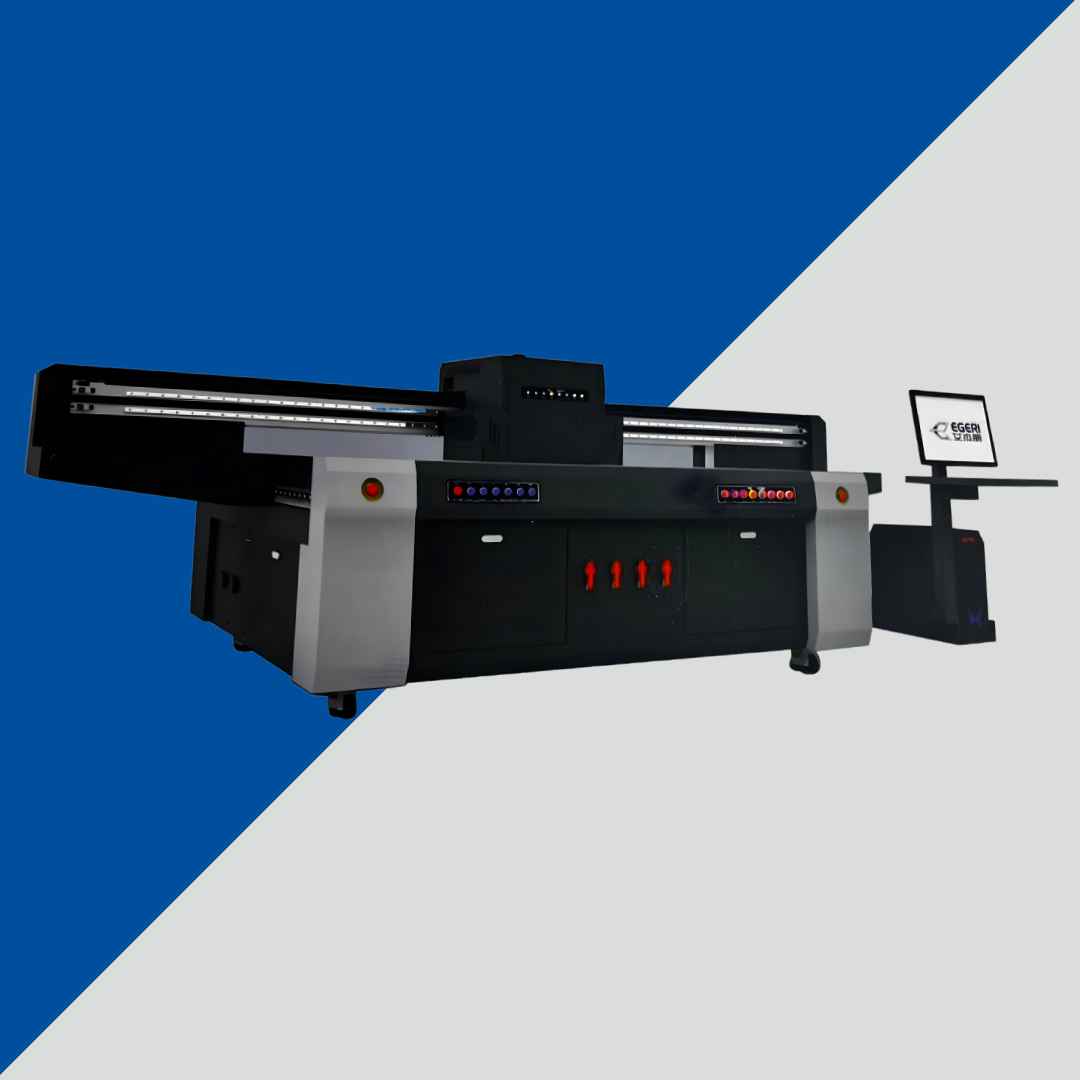

• True Flatbed UV Printing System
• Ricoh Gen-5 Industrial Print Head
• UV LED Water-Cooled Curing System
• Servo Motor with Lead Screw Drive
• Supports Rigid & Flexible Media
| Parameter | Specification |
|---|---|
| Print Size | 2.5 × 1.3 m (8 × 4 ft) |
| Head Model | Ricoh G5 |
| Head Qty | 2–8 pcs |
| Head Board | UNION / SHANGHAI |
| Print Direction | Unidirectional / Bidirectional |
| Head Cleaning | Automatic Height Measurement |
| Transmission | Servo Motor & Lead Screw |
| Print Speed (Quality) | 15–20 sqm/h |
| Print Speed (Production) | 20–30 sqm/h |
| Print Speed (High Resolution) | 10–15 sqm/h |
INK SYSTEM
| Parameter | Specification |
|---|---|
| Ink Type | UV Ink (RoHS Certified) |
| Color Set | CMYK + LM + LC + W + V |
| Ink Cartridge Volume | 3 L |
| Ink Supply | Independent Dual Negative Pressure Ink Supply System |
| Drying Type | Imported LED Lamp Curing |
| White Ink Stirring | Standard Configuration |
| White Ink Circulation | Standard Configuration |
MEDIA
| Parameter | Specification |
|---|---|
| Media Type | Acrylic / Aluminum / Ceramic / Foam Board / Glass / Cardboard |
| Max. Media Thickness | 100 mm |
| Custom Size | Larger size can be customized |
OTHER
| Parameter | Specification |
|---|---|
| RIP Software | Ultraprint / Photo Print / ColorGate / ONYX |
| Interface | USB 3.0 |
| Color Control | ICC standards with curve & density adjustment |
| Image Format | TIFF / JPEG / PDF / PS / EPS / AI |
| Power Supply | AC 220V, 50/60Hz |
| Power | 3.5 kW |
| Noise | ≤32 dB (Working ≤65 dB) |
| UV Lamp | LED curing, 30,000 hrs lifetime, water cooling |
| Packing Size | 4.7 × 2.3 × 1.65 m |
| Packing Weight | 1600 kg |
