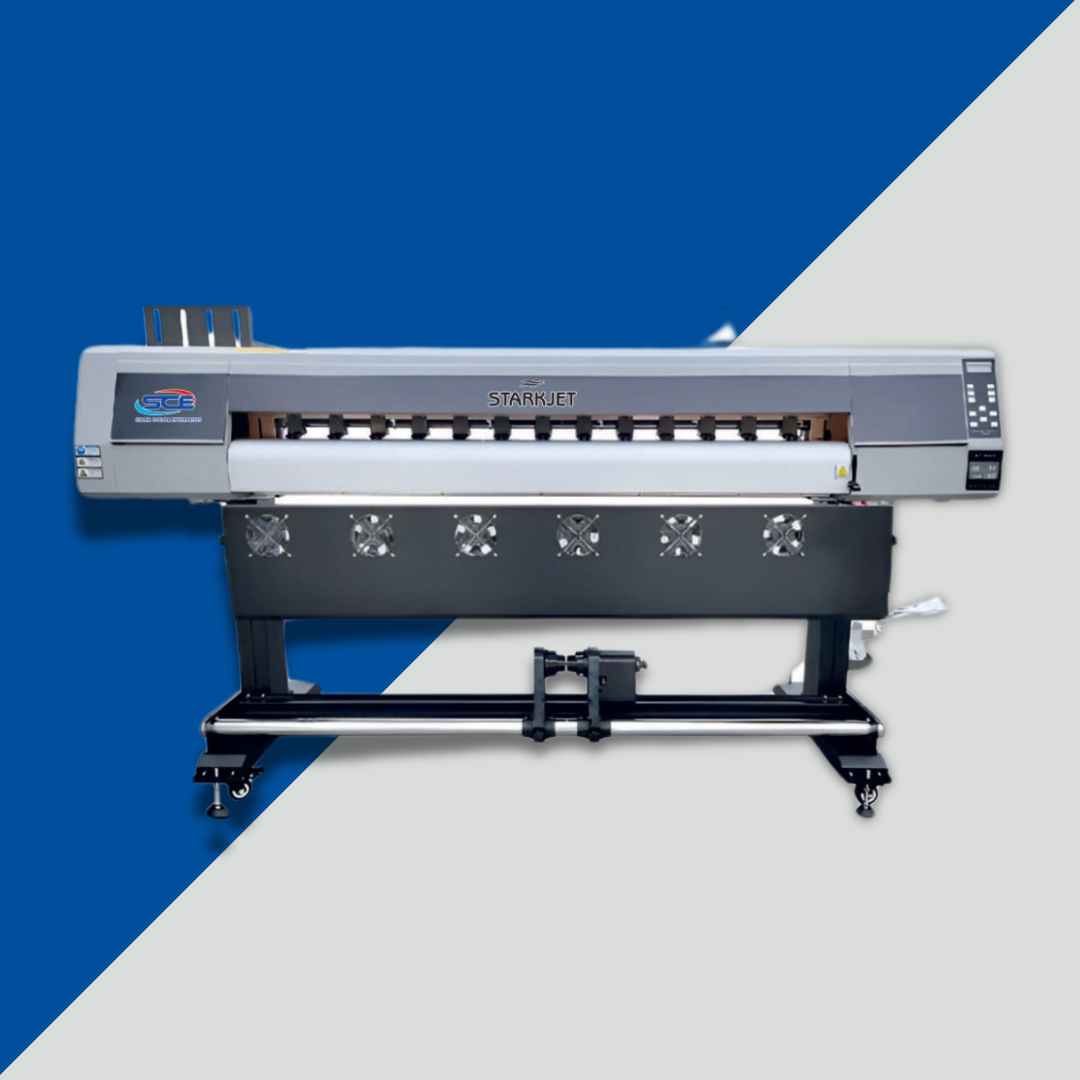

STARKJET Epson i3200

STARKJET Epson i3200 (3)

Technical Key Speciﬁcation

PASS	DPI	Weak Feather	Normal Feather	Strong Feather
3 PASS	360 × 1800	24.5 m²/h	23.25 m²/h	19.25 m²/h
4 PASS	720 × 1200	18 m²/h	17 m²/h	15 m²/h
6 PASS	720 × 1800	12.5 m²/h	11.5 m²/h	11 m²/h

Category	Feature	Optional Configuration
Boards & RIP	Boards	● Hoson Boards
	Password	Build in Boards & Showing in Software
	Rip Software	● Maintop Rip Software
Body	Main Girder Structure	160603mm Square Tube
	Y-Axis	20mm Diameter
	Beam	Metal Beam
	Linear Guide Way	Single linear guide way with One Block
	Pinch Roller	13 PCS Pinch Roller
	Printing Bed	144mm Wide Printing Bed
	Suction System	Adjustable Vacuum Suction System
	LED light	Printing Bed Lighting System
Carriage	Belt	Italy MEGADYNE Belt
	Chain	Chinese Brand Drag Chain
	Data Cable	Fiber or Germany Igus Data Cable
	Power Cable	Germany Igus Power Cable
	Encoder	180DPI (9730)
	Carriage Lifting	Manual type Carriage Lifting System
	Capping	Automatic Capping & Wipping System
Motor	X Motor	Leadshine 130W AC Servo Motor
	Y Motor	Leadshine 90W AC Servo Motor
	XY Motor Bracket	Metal Brackets
F & T	Feeding and Take up	Single Motor
	Leveling Stand	Leveling Stand
Ink Supply	INK Supply System	Basic ink supply system
	Main INK tank	1.2L Main INK tank
	Damper	Negative type Damper
	Ink Pump	SPD Ink Pump
Heating & Drying	Drying System	Cooling Fans + IR Heating System
	Heating Control Panel	3 in 1 Heating Control Panel
	Heating System	Rear-Printing Bed-Front 3 Heaters
	Carriage Plate Heater	None (无)
Packing	Printer Name Plate	Aluminum Name Plate
	Printer Size LWH	25856701300 / 27856701300
	Printer Packing	Wooden Box
	N.W./G.W.	177KG/240KG
	Packing size	2700570650 / 2900670650
