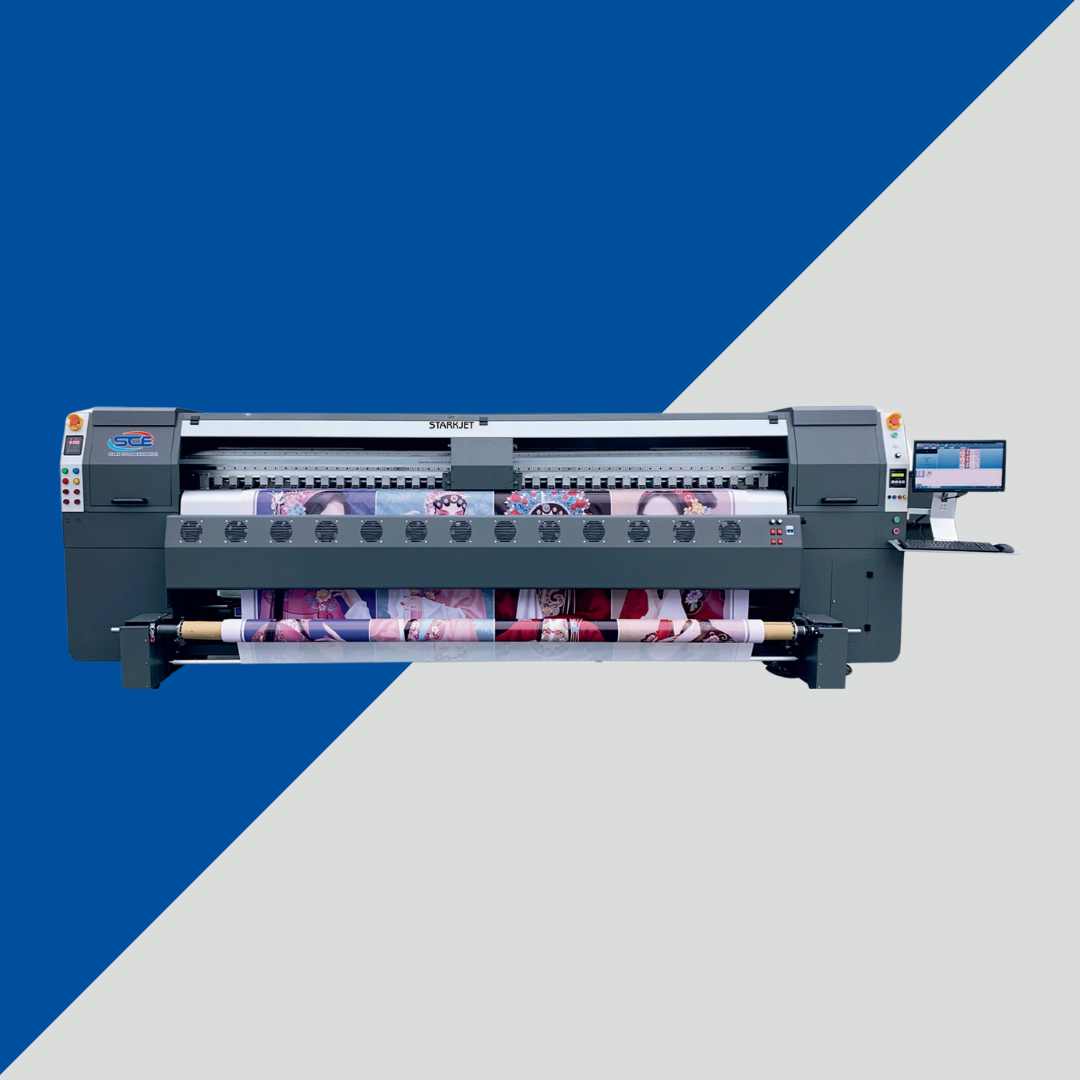

Product Name - Konica 512i 8h
Printer - C85

  • BYHX KM1012i 8H board
  • HOSON Ultra Print software
  • Leadshine 400W AC Servo Motor
  • 20*20*77CM main beam forbody
  • Metal beam for carriage
  • Single THK linear guide with 2 sliders

Send Your Personalized Quotation

Please enable JavaScript in your browser to complete this form.
Technical Key Specification

Printing Speed

DPIPASSSPEED
480×3602240 m²/h
480×7203160 m²/h
480×10804120 m²/h

Package Size


N.W1000 KGSG.W1220 KGS
Machine Size4.73 × 1.07 × 1.565 M
Whole Package5.30 × 1.15 × 1.95 M = 11.89 CBM
Separate Package4.8 × 0.75 × 1.13 / 1.05 × 0.76 × 1.13 = (4.97 CBM )
Features & Optional Configuration
FeaturesOptional Configuration
180DPI Encoder stripe with sensorUpgrade to PhotoPRINT RIP software
Manual screw type carriage lifting systemUpgrade to Maintop software
Anti collision systemUpgrade to HOSON Ultra Print software
Unique printhead protection stackUpgrade to aluminium beam
Suction type waste ink tankUpgrade to negative system
36 PCS high precision aluminum made pinch rollerUpgrade to 5500W Automatic Infrared system
High quality 225mm wide printing bedAcer 18.5 Inch LCD Screen
Adjustable vacuum for printing bedLCD&Key board Bracket
Belts & Pulley systemBig roll Material Holding system
20MM Diameter steel axisDouble THK linear guide
Aluminum Machined BracketsDouble Sticker feeding system
Positive pressure ink supply systemDouble Sticker take up system
Individual ink purging systemBasic Roll Material take up system
Ink supply alarm systemBasic independent take up system
Low ink warning systemLuxury independent take up system
4 in 1 Heating control systemVacuum bag package
Rear-Printing bed-front heater
Subtank heater
3500W on/off Infrared drying system
LED lights at cleaning position and printing bed
Step-free feeding system
