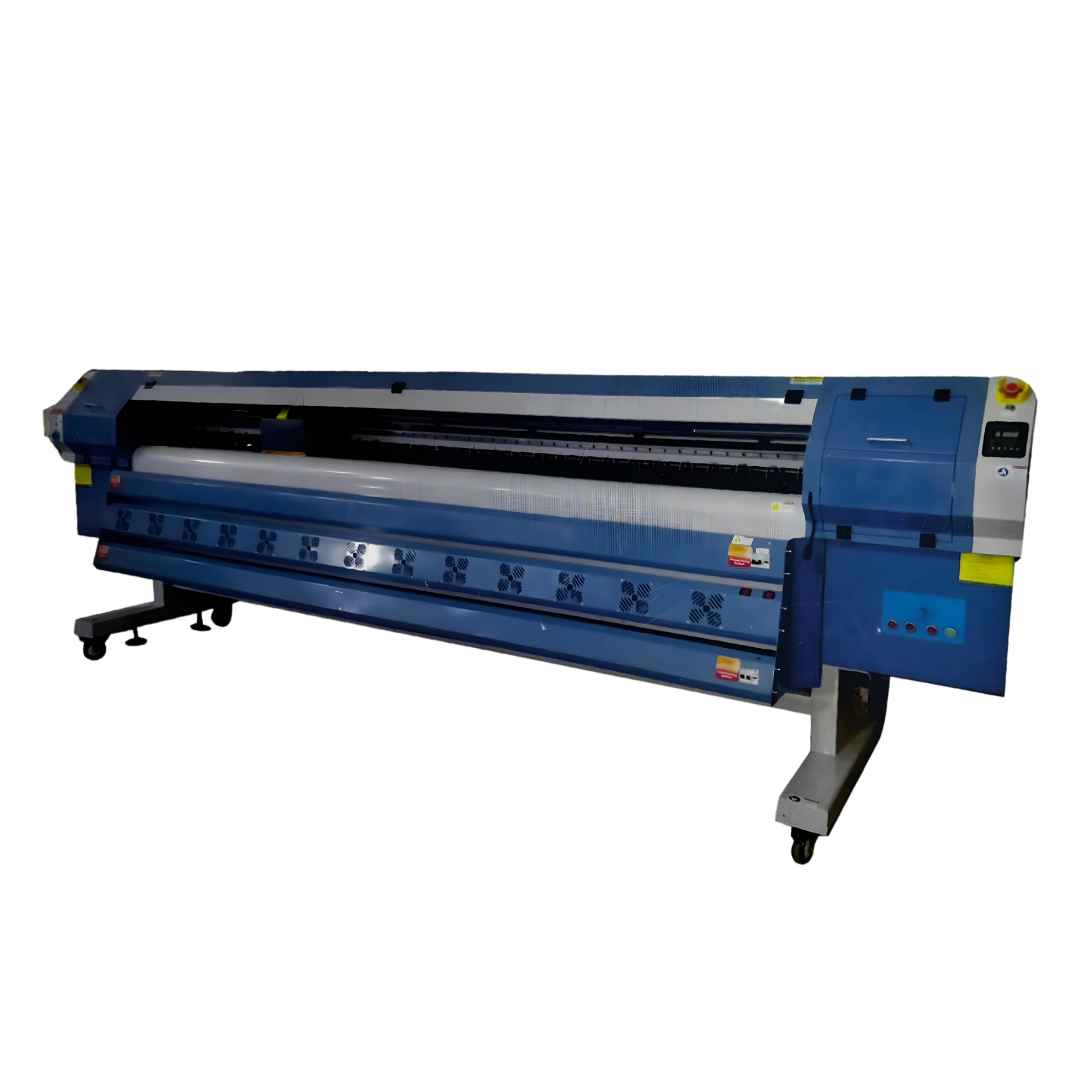

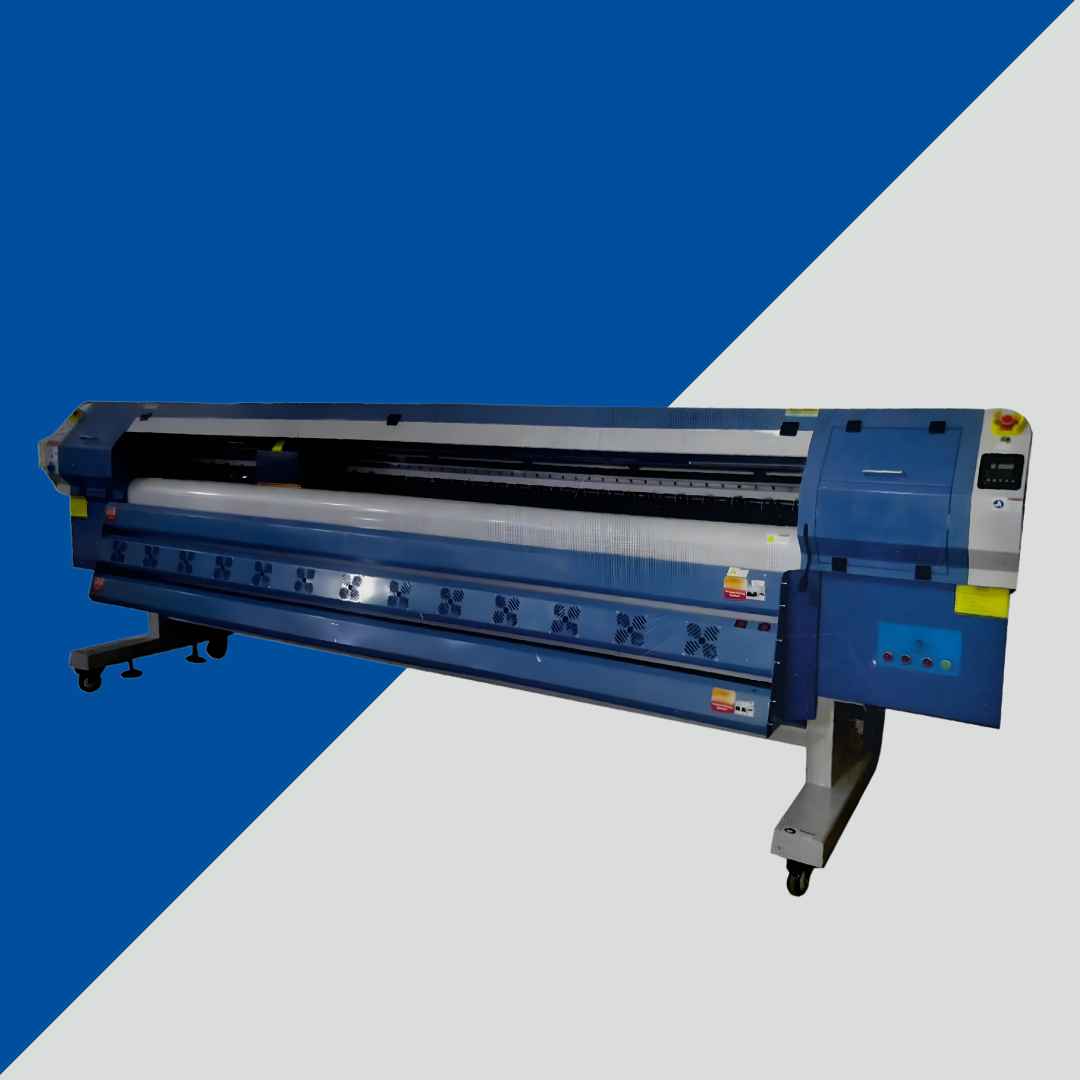

• High-Speed C8 Printer with Konica 512i Print Head
• Supports 2–8 Heads for Flexible Production Output
• Servo Motor & Lead Screw for Smooth and Accurate Printing
• Wide 3.2 m Media Support with IR & Heater Drying System
• Compatible with Flex, Vinyl, Backlit & One-Way Vision Media
MODEL
| Parameter | Details |
|---|---|
| Model | C8 |
| Technology | BYHX A Type |
COLOR
| Parameter | Details |
|---|---|
| Color | CMYK |
PRINT HEAD
| Parameter | Details |
|---|---|
| Head Model | Konica 512i |
| No. of Print Head | 2–8 pcs |
| Head Board | UNION / SHANGHAI |
PRINT TECHNOLOGY
| Parameter | Details |
|---|---|
| Print Direction | Unidirectional / Bidirectional |
| Head Cleaning | Automatic Height Measurement |
| Transmission | Servo Motor & Lead Screw |
| Print Speed – Quality Mode | 15–20 sqm/h |
| Print Speed – Production Mode | 20–30 sqm/h |
| Print Speed – High Resolution Mode | 10–15 sqm/h |
COMPUTER CONFIGURATION
| Parameter | Details |
|---|---|
| Resolution | Windows 7 / 8 / 10 |
| Storage | 1 TB |
| Interface | USB 3.0 |
| Maximum Resolution | Up to 1440 DPI |
MEDIA
| Parameter | Details |
|---|---|
| Media Printing Width | 3.2 m (126 inches) |
| Media Type | Flex, Vinyl, Backlight, One Way Vision etc. |
IMAGE FORMAT
| Parameter | Details |
|---|---|
| Supported Formats | PDF, JPEG, TIFF, EPS, BMP, AI |
| Media Heating System | Direct Front & Rear Heater up to 60 & IR Dryer System |
INK
| Parameter | Details |
|---|---|
| Ink Type | Solvent Based Pigment Ink |
| Power Supply | AC 50Hz / 60Hz / 220V / 15A |
PRINTING SOFTWARE
| Parameter | Details |
|---|---|
| Software | Maintop / Ultraprint |
| Communication | Hi Speed USB |
PRODUCT DIMENSIONS (W × D × H)
| Parameter | Details |
|---|---|
| Machine Size | 5 × 0.8 × 1.8 M |
| Gross Weight (GW) | 850 Kg |
| Net Weight (NW) | 750 Kg |
Take your print business to the next level with high-speed, reliable machines.
Our experts are ready to guide you—Call Now for the best solution!
