Machine Specifications and Features

Laser engravers/cutters are expertly designed to deliver quick, clean, quality results for a broad range of engraving applications and needs. Laser cutting enhances and generates added product value and provides greater turnover. Not only the production of single pieces or small series, but also serial production is cost-efficient and economic. Practically every design can be realized using a laser. This gives us total freedom when designing our own inscriptions, logos, barcodes, or serial numbers. Even photos can be engraved quickly.

The laser beam is the universal tool for all materials like plastic, wood, glass, MDF, acrylic, textiles, leather, handicrafts, card, paper, films, and many more.

It is regularly used in industries like advertising, craftwork making, mould making, toy manufacturing, etc. The laser cutting and engraving machine can cut and engrave on non-metal materials such as bamboo ware, wood planks, coconut shells, paper, organic glass, double color boards, acrylic, marble, jades, crystal, and more.

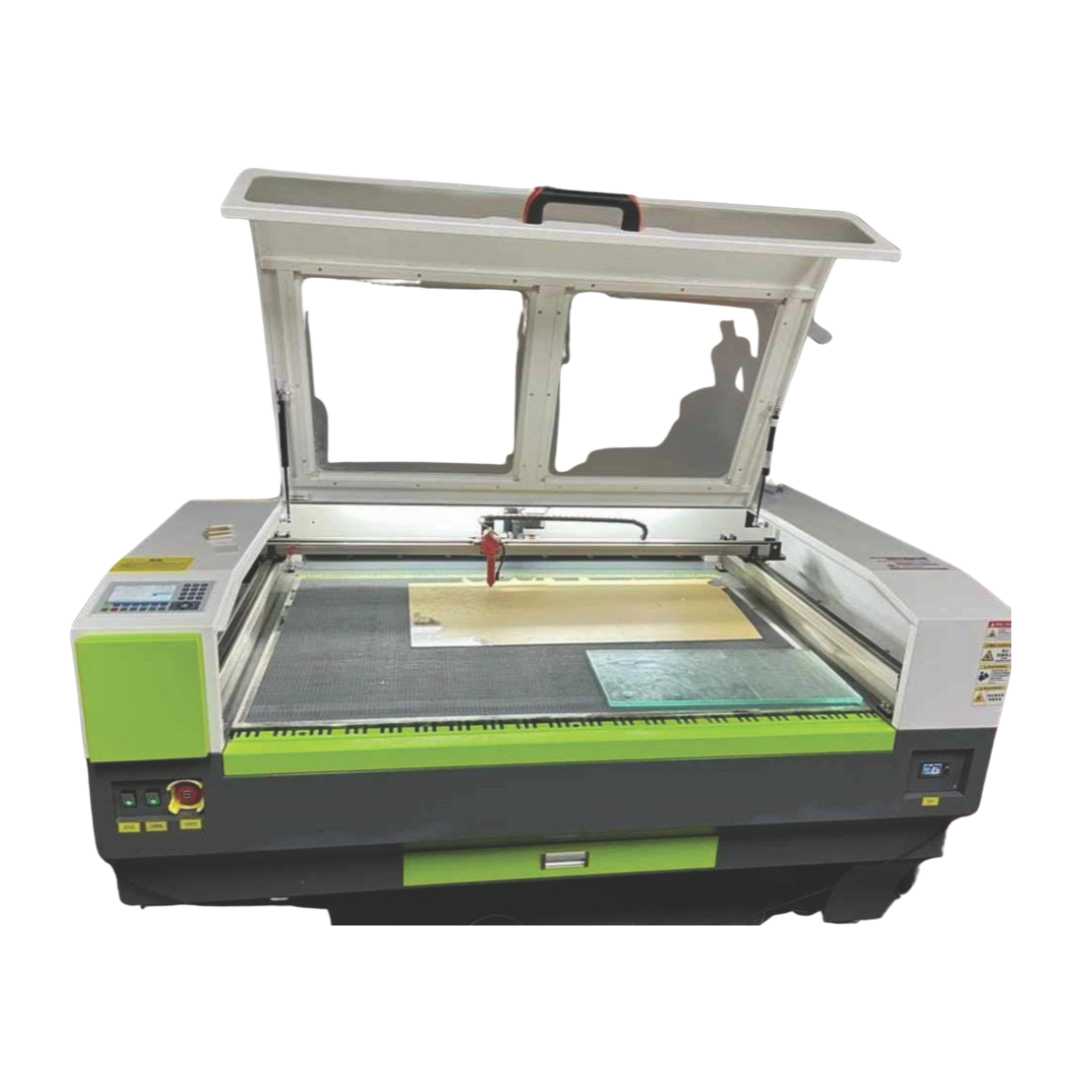

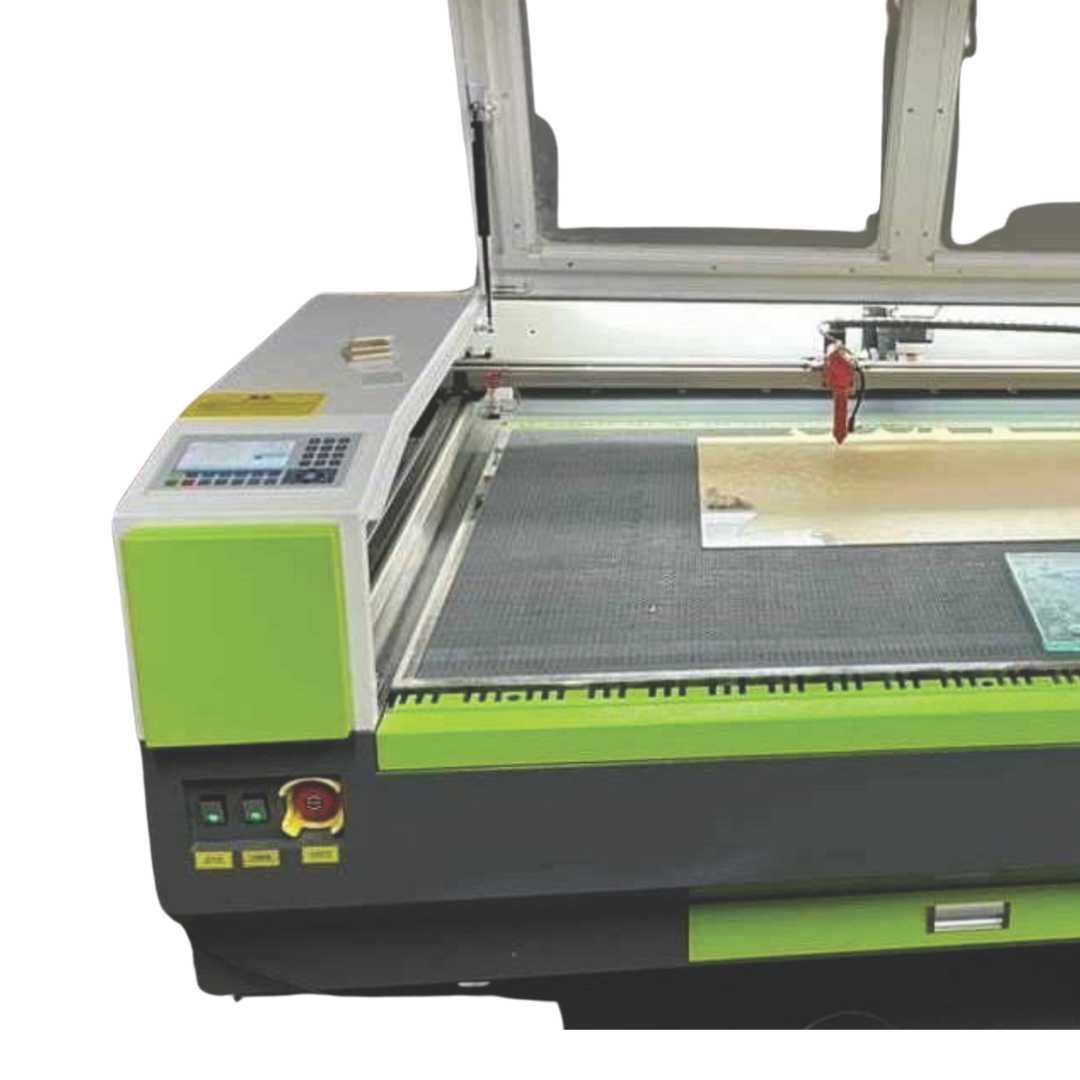

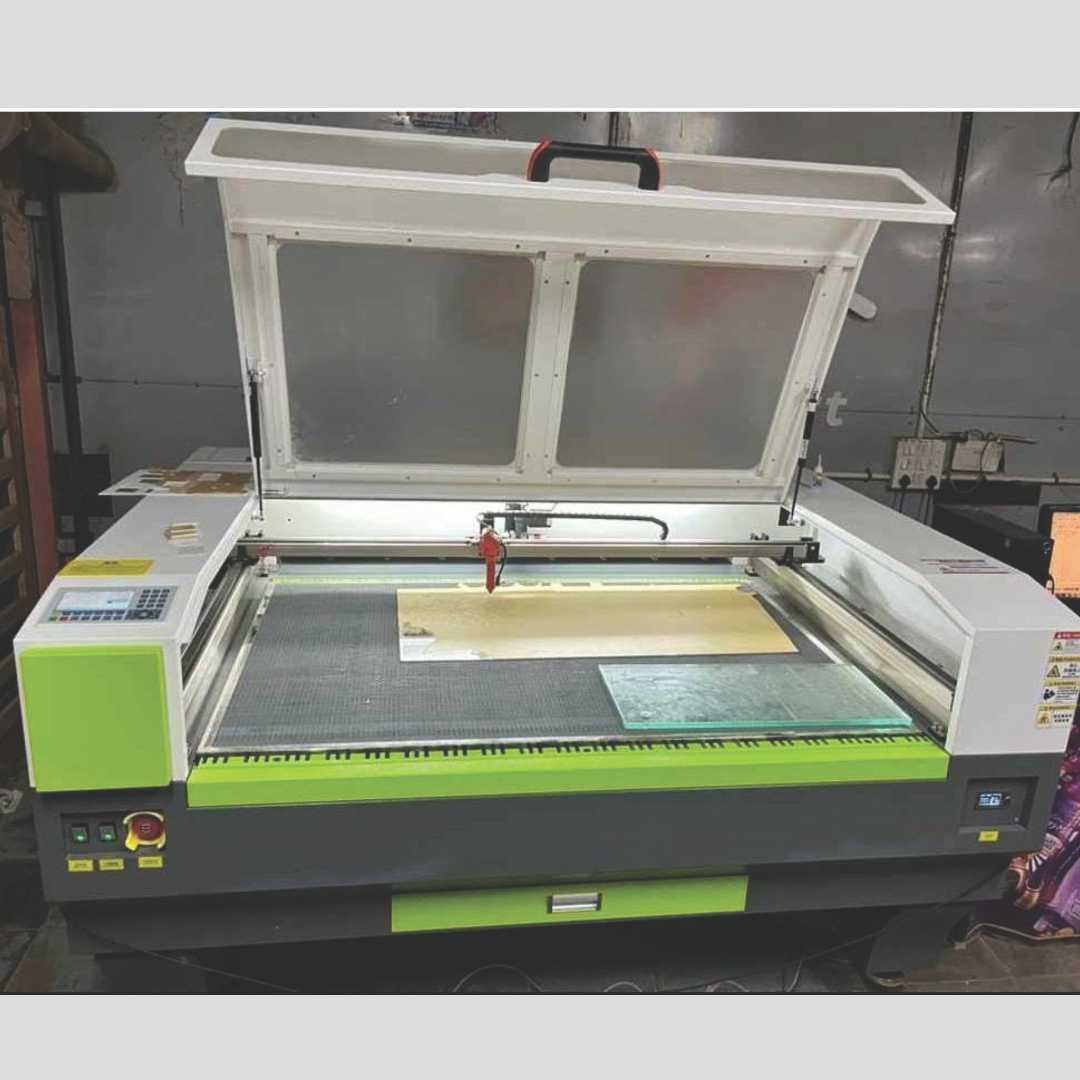

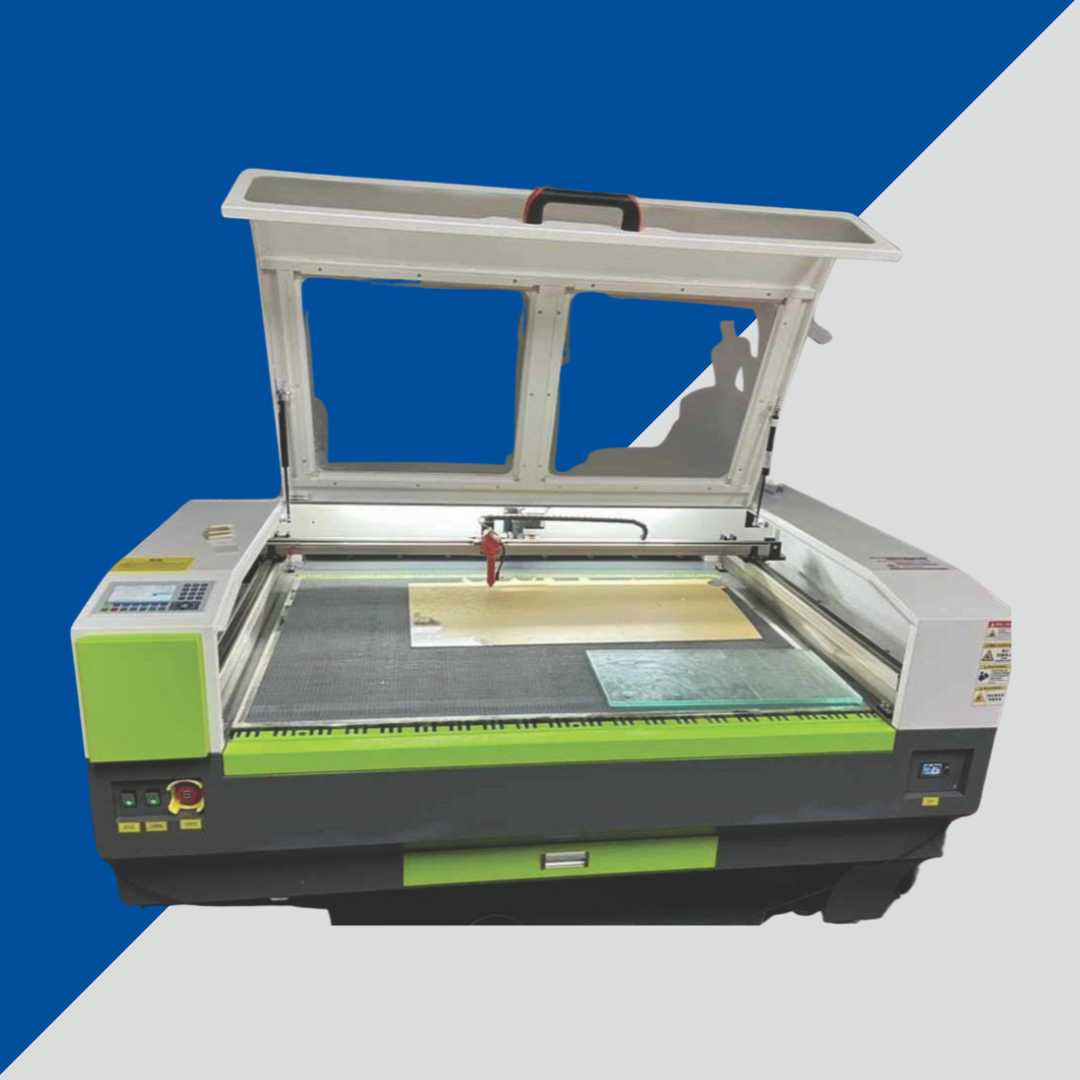

Specifications of Laser Cutting Machine

Model : DM-1390
Work Size : 1300 × 900 mm
Laser Tube : EFR CO2 Sealed Glass
Laser Power : 100W
Working Table : Honeycomb / Stripe
Bed Max Speed : 0–36000MM/MIN
Resolution : 1000DPI
Image Form : PLT, DXF, BMP, JPG, GIF, PNG, TIF, AI
Drive Type : Stepper Motor Micro Stepping
Yako Drive : 3505Power 220V/50Hz
Machine Size : 1300 × 1940 × 1100
Cooling Way : Chiller CW5000
Exhaust Fan : 550W
G.W. : 280 kg
